LT Switchgear

B

BASIC POWER ENGINEERING LTD.

Key Info

Circuit Breakers : Air Circuit Breakers (ACB) for main incoming power and Molded Case Circuit Breakers (MCCB) for outgoing feeders.
Busbars : High-conductivity copper or aluminum bars that distribute power across the panel.
Metering & Monitoring : Integrated digital meters for real-time tracking of voltage, current, and energy consumption.
Protection Relays : Sensors that automatically trip the breakers during overloads, short circuits, or earth faults.
REQUEST A QUOTE

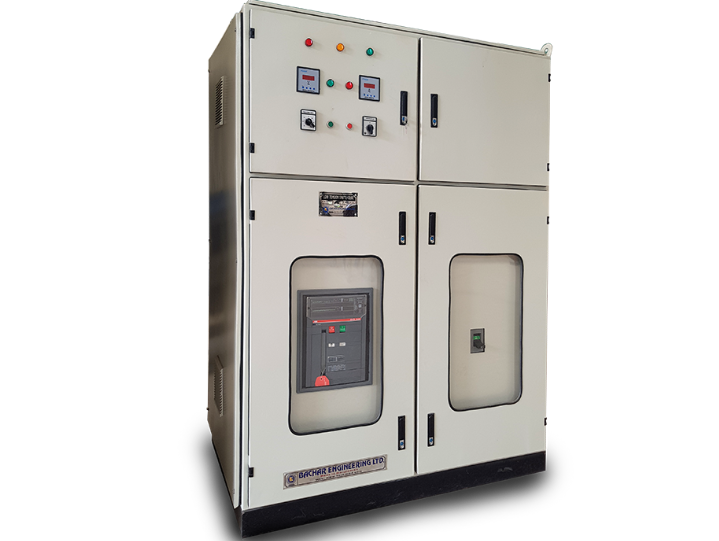

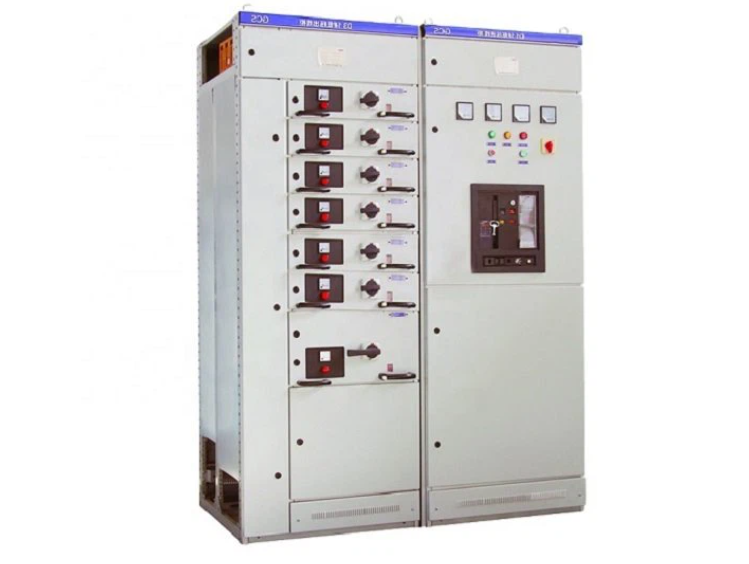

LT Switchgear Panel

The Low Tension (LT) Switchgear Panel is a robust, high-performance power distribution solution designed to manage and protect electrical networks up to 1000V AC. Engineered for industrial and commercial environments, this panel acts as the nerve center for electrical safety, providing seamless control and protection for heavy-duty machinery and sub-distribution systems.

Design & Construction

  1. Modular Architecture: Features a versatile, compartmentalized design that separates the busbars, cable terminations, and switching devices to enhance safety and ease of maintenance.
  2. Durable Enclosure: Fabricated from high-quality CRCA (Cold Rolled Close Annealed) steel, finished with an anti-corrosive powder coating to withstand harsh industrial environments.
  3. Ingress Protection: Available in various IP ratings (such as IP42 or IP54) to ensure protection against dust, moisture, and accidental contact.

Operational Features

  1. Precision Protection: Equipped with advanced Air Circuit Breakers (ACB) and Molded Case Circuit Breakers (MCCB) that provide reliable protection against overcurrent, short circuits, and earth faults.
  2. Efficient Distribution: High-conductivity electrolytic-grade busbars (Copper or Aluminum) ensure minimal power loss and high thermal stability during peak loads.
  3. Real-Time Monitoring: Integrated digital metering allows for the precise tracking of voltage, amperage, frequency, and power factor, facilitating better energy management and diagnostics.
  4. Maintenance Ready: Available in draw-out configurations, allowing individual breakers to be serviced or replaced without de-energizing the entire system, significantly reducing downtime.

Technical Capabilities

  1. Rated Voltage: Up to 690V AC.
  2. Current Capacity: Scalable configurations up to 6300A.
  3. Short-Circuit Strength: Designed to withstand high fault levels, typically ranging from 35kA to 100kA for 1 second.
  4. Compliance: Fully compliant with international safety standards, including IEC 61439-1 & 2.

Applications

  1. Manufacturing Facilities: Reliable power management for production lines and motor control centers.
  2. Commercial Infrastructure: Centralized distribution for high-rise buildings, data centers, and hospitals.
  3. Utility Substations: Effective secondary distribution from main power transformers.
